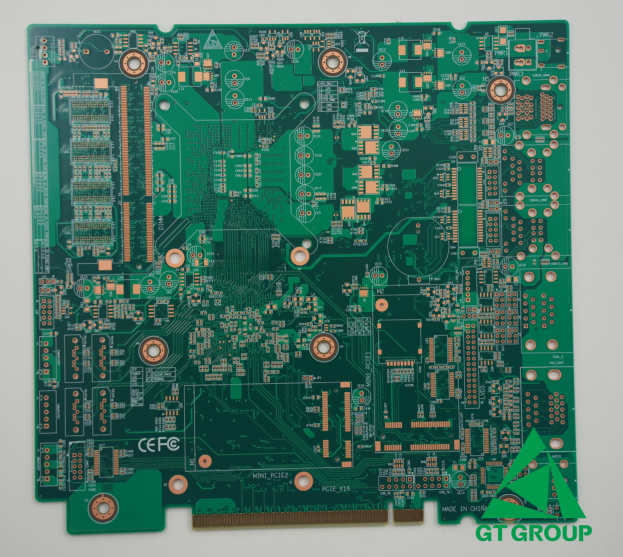

10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology
  • 10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology

10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology

प्रमाणन ISO9001, TS16949
उत्पाद विवरण
वस्तु:
कस्टम सर्किट बोर्ड 10 परत
तांबा:
हर परत के लिए 1oz
बोर्ड की मोटाई:
एफआर4 टीजी150 1.6मिमी
पीसीबीए सेवा:
एसएमडी श्रीमती डीआईपी घटक विधानसभा
तकनीकी:
इम्पेंडेस कंट्रोल, गोल्डर फिंगर+ बेवल
न्यूनतम रेखा स्थान:
3 मील (0.075 मिमी)
न्यूनतम छेद आकार:
0.2 मिमी
न्यूनतम छेद आकार:
0.2 मिमी
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 पैनल
मूल्य
बातचीत योग्य
पैकेजिंग विवरण
वैक्यूम पैकेज
प्रसव के समय
1-2 सप्ताह
भुगतान शर्तें
टी/टी
उत्पाद वर्णन

Product Description:

A 10-layer, 1 oz rigid PCB is a high-performance circuit board with 10 conductive copper layers and a standard copper thickness of 1 ounce on each layer. This type of board is used in advanced electronics where high density, reliability, and signal integrity are essential.

The term "10-layer" refers to the number of conductive copper layers. These layers are stacked and separated by insulating materials (dielectrics) like FR-4 (fiberglass-epoxy laminate). The stack-up of these layers is carefully designed to optimize performance. A typical configuration might include:
Signal Layers: These layers carry data and signals between components. With 10 layers, designers have ample space to route complex circuits, reducing signal congestion and allowing for high-density component placement.
Power and Ground Planes: Dedicated layers for power and ground provide a stable and low-impedance path for current, which is crucial for high-speed digital circuits. They also act as a shield to minimize electromagnetic interference (EMI) and help with heat dissipation.


Technical Parameters:

Product item 10 layer rigid PCB board
Board Thickness FR4 Tg150 1.6mm
Processing Technology Impendace control, golden finger
Solder Mask Color Geen soldermask+ white silkscreen
Standard Testing IPC Class 2
Minimum Hole Size 0.2mm
Pcba Service SMD SMT DIP Component Assembly
Minimum Line Space 3mil (0.075mm)
Min Hole Size 0.2MM



Support and Services:

Our Product Technical Support and Services for the Heavy Copper PCB include:

- Expert consultation on design and manufacturing considerations

- Assistance with material selection and specifications

- Guidance on meeting industry standards and regulations

- Troubleshooting and resolution of technical issues

- Customization options to meet specific requirements
